Fence

3D Fence/Triangle Fence

Product Description

3D wire fence is also called the curved wire mesh fence. This fence panel is more reinforced than ordinary welded mesh panel because of the trangle curved. 3D fence panel can be connected wit different posts such as, peach post, square post, rectangular post, round post, etc.

3D welded wire mesh fence is mainy used in residential, stadium. Warehouse, highway or airport service area. railway station and other areas. The 3d curved wire mesh fence has the characteristics of beautiful appearance, no limitation of terrain fluctuation and convenient installation.


Product Specification

Mesh OpeningWire ThicknessPanel WidthNumber of FoldsHeight
55x200mm,
50x200mm,
50x100mm,
75x150mm,
50x150mm,
etc.
3.0mm
or
3.5mm
or
4.0mm
or
4.50mm
or
5.00mm
2.0m
or
2.50m
or
2.9m
2830mm
21030mm
21230mm
21430mm
31630mm
31830mm
42030mm
42230mm
42430mm



Post TypeSizeThicknessHeight
Round Post48mm, 60mm1.5mm, 2.0mm, 2.5mm, 3.0mm1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m
Square post50x50mm, 60x60mm1.5mm, 2.0mm, 2.5mm, 3.0mm1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m
Rectangular post40x60mm, 40x80mm1.5mm, 2.0mm, 2.5mm, 3.0mm1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m
Peach post,50x70mm, 70x100mm1.2mm, 1.5mm1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m
I post42x70mm1.2mm, 1.5mm, 2.0mm1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m

 Note: Special size and specifications can be made according to customers' requires.


Product Details

Product Type:

Panel wire: Q195,Q235 Low carbon steel wire

Post: hot dipped galvanized tube,powder coated tube,PVC coated tube

Bolts: M8 anti-vandal steel or stainless steel

Surface treatment: Hot dipped galvanized, PVC coated, powder coated

Color: Green, black, yellow, white, blue, etc.

Processing of welded wire mesh fence:

Material – Straightening & cut wire – Welding – Galvanizing – Powder coating – Packaging

Surface Treatment Processes

◆ Hot Dipped Galvanizing: After welding, the steel surface is coated through the hot dip galvanizing process, forming a protective layer that effectively prevents oxidation corrosion and prolongs the fence's lifespan.

◆ PVC Coating (Plastic Coating) or Powder Coating: High-quality powder is used for spraying, combining with the galvanized layer to create a more effective protective layer. This treatment enhances protection against oxidation and corrosion while also providing an aesthetically pleasing finish.

3D curved wire mesh fence types

◆ Peach Post 3D Fence: Features peach-shaped posts for a unique and decorative appearance, often used in residential and commercial settings.

◆ Square Post 3D Fence: Utilizes square posts, providing a clean and modern look, suitable for industrial and commercial applications.

◆ Rectangular Post 3D Fence: Offers rectangular posts for a more substantial and robust appearance, ideal for securing larger areas.

◆ Round Post 3D Fence: Incorporates round posts for a classic and elegant look, commonly used in parks and recreational areas.

3D Welded Wire Fence Features

3D Welded Wire Fence Features

Enhanced Strength: The V-shaped bending curves significantly enhance the sturdiness of the mesh, providing superior resistance to impacts and deformation.

Aesthetic Design: The 3D curves add a modern and attractive look to the fence, making it a stylish choice for both residential and commercial properties.

Corrosion Resistance: Available in hot-dipped galvanized or PVC/powder-coated options, the fence offers excellent protection against corrosion, ensuring a long service life.

Wide Application: Suitable for a variety of settings, including residential areas, stadiums, warehouses, highways, airport service areas, railway stations, and more.

Easy Installation: The design allows for simple and efficient installation, with pre-punched mounting holes for easy bracket attachment.

Customization Options: Available in a range of specifications, colors, and post styles to meet different aesthetic and functional requirements.

3D wire fence applications

◆ Residential Security: Perfect for securing residential properties, providing both safety and an attractive boundary.

◆ Commercial and Industrial Protection: Ideal for protecting commercial premises, industrial sites, and securing perimeters of factories and warehouses.

◆ Public Spaces: Enhances the ambiance and security of parks, public gardens, sports fields, and other communal areas.

◆ Transportation Infrastructure: Suitable for use in highway or airport service areas, railway stations, and other transportation-related applications.


Company services

◆ Free Samples and Technical Guidance: Mclassic Metal offers free samples and provides technical guidance to help customers make informed decisions and ensure proper installation.

◆ Customization Services: As a professional 3d welded wire fence supplier, we provide customization options to meet specific requirements, allowing customers to choose from various styles, materials, and sizes to perfectly fit their needs.

◆ Quality Assurance: With more than 20 years of experience, Mclassic Metal ensures the durability and performance of our 3D wire fences, backed by a commitment to excellence and customer satisfaction.

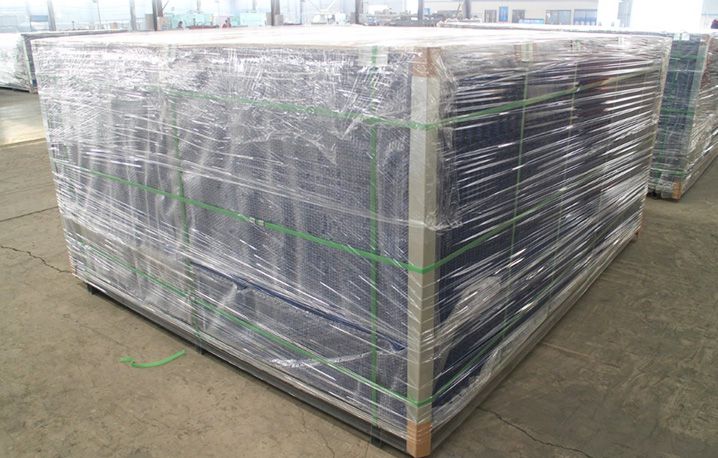

Product Packing & Shipping

Product Packing & Shipping

Fence packing

<1>Plastic film at the bottom to avoid the panel be destroyed

<2>4 metal corners to ensure the panel strong and uniform

<3>Wood plate at the top of pallet to keep the under panel

<4>Pallet tube size:40*80mm tubes at the bottom vertical position

Post & Accessories packing

<1>The caps have been installed on the top of post, which reduce your labor cost and installing time

<2> Each post are packed by a long plastic bag avoiding damaged by friction

<3> All posts are packed by metal pallet for loading and unloading

Clips and screws are packed by sets, plastic film + carton box.
