BRC Fence/Roll Top Fence

Product Description

The roll top fence, also known as BRC fence, features a unique and user-friendly closed and rolled beam section at the top and bottom edge of each panel, ensuring there are no sharp or raw edges. Typically constructed from heavy 5 mm wires, this design provides maximum rigidity and enhanced safety.

The roll top fencing is particularly suitable for areas where safety is a top priority, such as schools, sports facilities, parks, playgrounds, and company premises. Robust construction and clear visibility make roll top fence panels ideal choice for creating secure boundaries in these settings.

Unique design, with no protruding sharp edges, ensures optimum safety. BRC welded fence is widely used for various wire mesh fencing applications, including parks and recreational fencing, playground fencing, and school fencing.

Inquire Now Next Product

Product Specification

BRC fence Roll top fence	Mesh Spacing (mm)		Wire Diameter (mm)
	Vertical wire space	Horizontal wires pace
Type 1	50mm	150mm	4mm, 5mm, 6mm, 7mm, 8mm
Type 2	75mm	300mm	4mm, 5mm, 6mm, 7mm, 8mm
Panel Size Height x Width (mm)	900 x 2400mm
	1200 x 2400mm
	1500 x 2400mm
	1800 x 2400mm
	2100 x 2400mm
	2400 x 2400
Post Specification (mm)	Round post ● Size: 48mm, 60mm ● Thickness:1 .5mm, 2.0mm, 2.5mm, 30mm ● Accessories: Stainless Steel U-clip & M6 Bolt 7 Nut
	Square Post ● Size: 50x50mm, 60x60mm, 80x80mm ● Thickness:1.5mm, 2.0mm, 2.5mm, 3.0mm ● Accessories: U-Clip, Bolt & Nuts, Flat Bar etc
Surface Treatment	● Hot dipped galvanized after welding ● Plastic coating (PVC Coating) after galvanized wire & tube welded ● Power coating after galvanized wire & tube welded
Materials and specifications can be made according to customers' detailed requirements.

Product Details

Product Type:

Post

Square hollow steel section 60 x 60 x 2.0mm or 60×80mm and ( others are available) Longer posts for higher fences can be supplied. Panels are secured to the posts with steel clips and 6.0mm galvanized security fixings screwed into threaded inserts in the posts.

Gates

Swing gates are available to suit standard height in single and double leaf configuration with a twin wire welded mesh in-fill to match the your BRC fencing mesh panels. Special sized swing gates or sliding gates can be manufactured to suit individual customer requirements.

Accessories

Metal clamp / anti-UV plastic clamp

Metal cap / anti-UV plastic cap

Coating

Roll top mesh fence panels are manufactured using galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's high weather-ability and gloss retention in U.V. exposure.

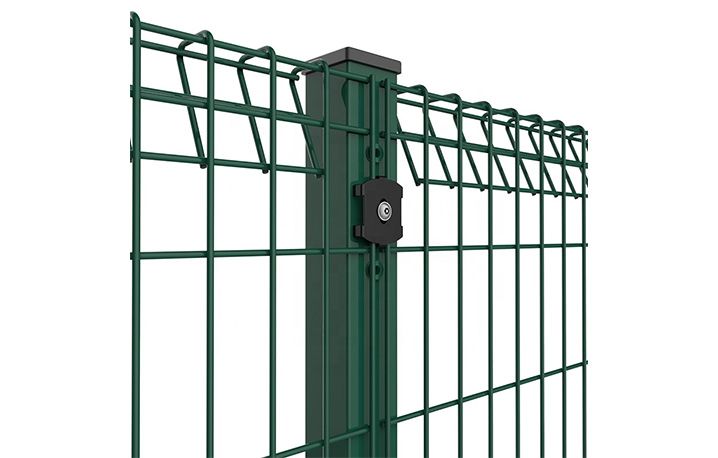

Roll top fence features

1. Safety First

Roll Top & Bottom Design: The unique rolled edges ensure there are no protruding sharp edges, making it ideal for areas where safety is a priority, such as schools, playgrounds, and public spaces.

No Raw Edges: The closed beam sections eliminate the risk of cuts or injuries, providing a user-friendly solution for both installation and daily use.

2. Durability & Longevity

High-Tensile Steel Wires: Made from high-quality low-carbon steel, ensuring exceptional strength and resilience.

Corrosion Resistance: Available in hot-dip galvanized and electro-galvanized with polyester powder coating finishes, providing excellent protection against rust and corrosion for extended outdoor use.

3. Aesthetic Appeal

Elegant Design: The rolled edges and precise mesh dimensions give the roll top welded mesh fencing a clean, modern appearance that enhances any environment.

Customizable Colors: Panels can be powder-coated in any RAL color to match specific design requirements, adding a touch of style to functional security.

4. Easy Installation

V-Shape Clips: Special "V" clips allow for quick and secure attachment of panels to posts, simplifying installation without compromising stability.

Versatile Post Options: Compatible with round, square, or rectangular posts, with options for metal or anti-UV plastic caps to suit different project needs.

5. Cost-Effective Solution

Economical Design: The roll top galvanized fence panel offers a balance between affordability and quality, making it a competitive choice compared to other fencing systems like 358 mesh or steel palisade fencing.

Low Maintenance: With minimal upkeep required, this fencing system provides long-term value for residential, commercial, and public applications.

BRC fence applications

◆ Residential & Commercial Properties: Ideal for securing gardens, yards, and walkways while maintaining visibility and aesthetics.

◆ Public Spaces: Perfect for parks, playgrounds, and recreational areas where safety and durability are paramount.

◆ Industrial & Corporate Sites: Provides secure boundaries for corporate buildings, parking lots, and construction sites.

◆ Temporary Protection: Can be used as a temporary safety barrier during building construction to protect workers and visitors.

Mclassic Metal Services

1. Customization

◆ Tailored Specifications: As a professional roll top fence supplier, Mclassic Metal offers customized panel sizes, wire diameters, mesh openings, and post designs to suit unique project requirements.

◆ Surface Treatment Options: Choose from hot-dip galvanizing, electro-galvanizing, or powder-coating to enhance durability and appearance.

2. Professional Support

◆ Expert Consultation: Our team of fencing specialists provides detailed guidance on product selection, installation, and maintenance.

◆ Project Planning: Assistance with calculating material requirements, designing layouts, and ensuring compliance with local regulations.

3. Quality Assurance

◆ Stringent Quality Control: Roll top fence panels for sale undergo rigorous testing to ensure it meets international standards for safety and durability.

◆ Reliable Delivery: Efficient logistics and packaging solutions to ensure your order arrives on time and in perfect condition.

4. After-Sales Support

◆ Installation Guidance: Comprehensive installation manuals and video tutorials to simplify setup.

◆ Warranty & Maintenance: Extended warranty options and ongoing support to address any concerns post-purchase.

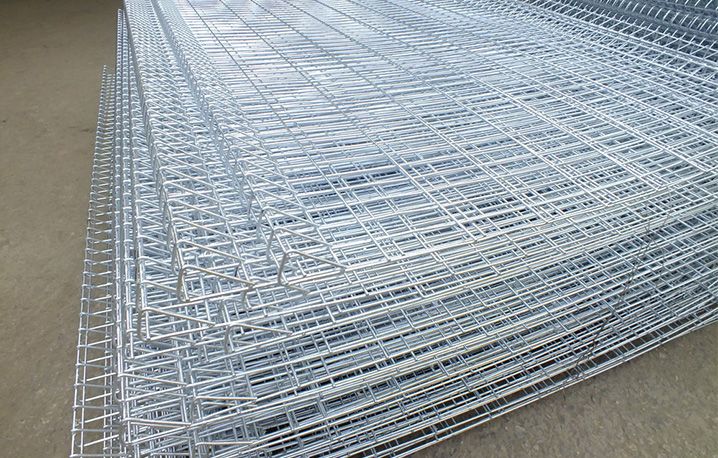

Product Packing & Shipping

1) In nude, which is the most popular packing ways as it could load bigger quantities, then lower unit price.
2) Plastic film, uniform and good integration.
3) Wooden pallet, save time and efforts, more convenient to load and discharge.

FAQ

Q: Are you manufacturer or trader?

A: We are manufacturer,and we are in fence field for more than 20 years.

Q: What's the lead time?

A: Normally our lead time is 15-25 days after we received the down payment. Urgent order can be negotiated.

Q: Can you provide samples?

A: Yes, we can provide samples with free charge, but the express cost need you pay first. When you placed the order, we will deduct the express cost from the contract amount.

Q: How do you control the goods quality?

A: We have the strict Quality Control System. And our quality inspector will record the production process and inspection from beginning to end in the form of photos or videos to you.

Q: Do you have quality guaranteed?

A: Yes, most of our products have a more than 10 years Quality Guarantee.

Q: Could you supply Door-to-Door Delivery?

A: Yes, we are very good at Door to Door Delivery, please inform me your detailed address, then I will quote you the freight cost to your home directly.

Q: How do we go to your factory for visiting?

A: Please inform me your flight time, we will pick you up at our nearby airport, then drive to our factory for visiting.
