Expanded Mesh

Product Description

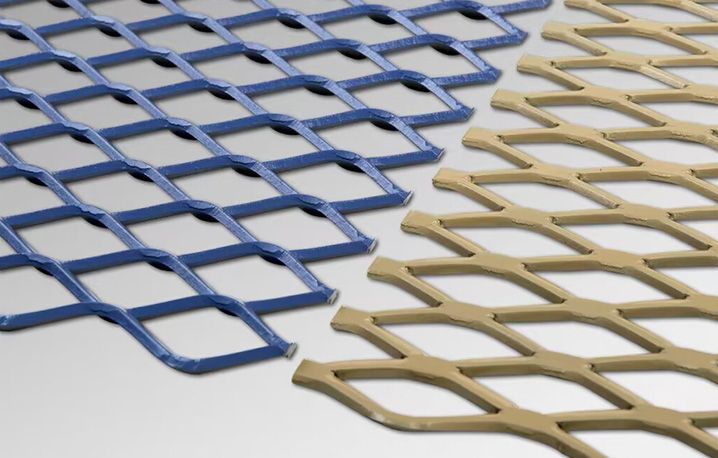

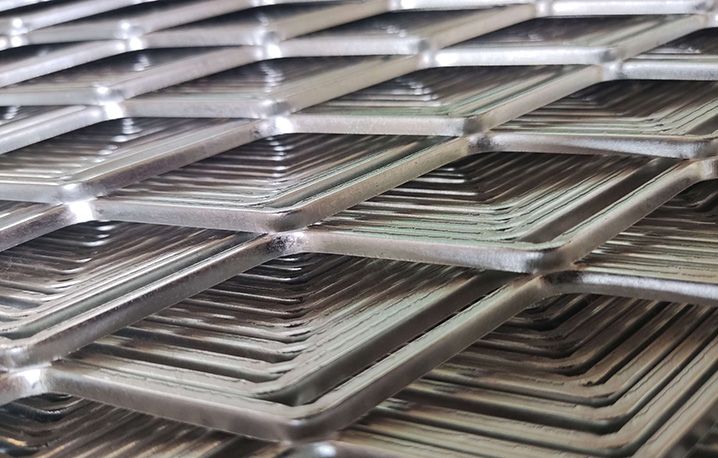

Expanded metal mesh is a metal sheet mesh with uniform holes that is formed by stretching and expanding a metal sheet through equipment. It is collectively called metal stretched mesh. Due to the different hole shapes, it is also called: diamond stretched mesh, hexagonal stretched mesh, Also known as: stainless steel stretched wire mesh, low carbon steel stretched wire mesh, aluminum plate stretched wire mesh, etc.

Inquire Now Next Product

Product Specification

Plate thickness(mm)	Hole width(mm)	Hole length(mm)	Stem	Mesh width(m)	Mesh length(m)	Weight(kg/m²)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39

Material	Stainless steel, aluminum, low carbon steel, galvanized steel, Copper, Titanium etc
LWD	MAX 300mm
SWD	MAX 120mm
Stem	0.5mm-8mm
Sheet width	MAX 3.4m
Thickness	0.5mm – 15mm
SurfaceTreatment	- Mill Finish- Anodized (colour can be customized)- Powder coated- PVDF- Spray painted- Galvanized : Electric galvanized, Hot-dipped galvanized
Classification	- Small expanded wire mesh- Medium expanded wire mesh- Heavy expanded wire mesh- Diamond expanded wire mesh- Hexagonal expanded wire mesh- Special expanded
Use	Expended metal mesh can be widely used in including the protection of machinery equipment, handicraft manufacturing, shelves, heavy machinery, workplatforms, walkways, ships as well as other areas.

Product Details

Product Type:

Surface Treatment: Powder coated, hot dipped galvanized, anodizing, etc.

Expended metal mesh application:

1. Aerospace: Nacelles, fuel filters, air filters

2. Appliances: Dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps.

3. Architectural: Stairs, ceilings, walls, floors, shades, decorative, sound absorption

4. Automotive: Fuel filters, speakers, muffler guards, protective radiator grills

5. Hammer mill: Screens for sizing and separating

6. Industrial equipment: Conveyors, dryers, heat dispersion, guards, EMI/RFI protection

7. Pollution control: filters, separators

8. Mining: Screens

9. Security: Screens, walls, doors, ceilings, guards

10. Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, diffuser drainage plates.

Product Features

The expanded steel mesh is uniform, the surface of the net is smooth and the coefficient of friction is-high, the strength is bin, the strength is strong, easy to-maintain and the visibility is good.

1. Corrosion resistance

2. Durable

3. Reliable Coating

4. Cost-Effective

5. Fast Turnaround

6. Beautiful

As a professional expanded metal mesh supplier, Mclassic Metal has full industry chain and strict quality control flow, with superior raw material, highly skilled technicians, advanced equipment, dedicated workmanship, perfect surface treatment, those to ensure a state of art expanded metal for sale. We can also customize a suitable set according to the customer's conditions.

Product Packing & Shipping

Packaging:

1. Packed by pallet.

2. Waterproof paper in rolls.

3. Custom packing available at your request.

Shipping:

We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.

FAQ

Q: When can we get your reply?

A: Within 1 hours after get your inquiry.

Q: How to make an inquiry of Expanded Wire Mesh?

A: You need to provide material, sheet size, LWD SWD and the quantity to ask an offer. You can also indicate if you have any special requirement .

Q: Could you provide free sample?

A: Yes, we can provide free sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.

Q: What types of materials are made into expanded metal sheet?

A: There are many types of materials made into expanded metal sheet. For example, aluminum, carbon steel, stainless steel, nickel, silver and copper can all be made into expanded metal sheets.

Q: What about the delivery time?

A: Normally 7-25 days, will depends on order quantity.

Q: How is your Payment Term?

A: Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L.Other payment term we can also discuss.
